Connecting Brace, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

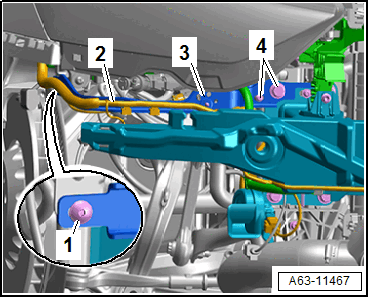

Left:
-- Free up the wiring harness -3-.
-- Remove the bolts -1 and 4- and then remove the connecting brace -2-.

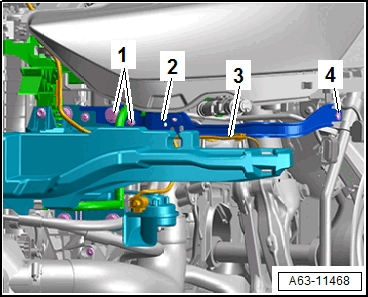

Right:
-- If equipped, free up the wiring harness -2-.
-- Remove the bolts -1 and 4- and then remove the connecting brace -3-.
