Center Air Intake Grille, Removing And Installing, S7 SPORTBACK: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the bumper cover end plate. Refer to BUMPER COVER END PANEL, REMOVING AND INSTALLING .

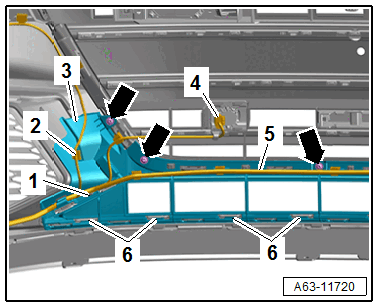

-- Disconnect the connector -4- and free up the wiring harness.
-- Free up the wiring harness -2 and 5-.
-- Right: if necessary, free up the washer fluid hose.
-- Remove the bolts -arrows-.
-- Release the retainers -1 and 6-.
-- Remove the air intake grille -3-.
