Center Air Intake Grille, Removing And Installing, A7 SPORTBACK: Removing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bumper cover end plate. Refer to BUMPER COVER END PANEL, REMOVING AND INSTALLING .

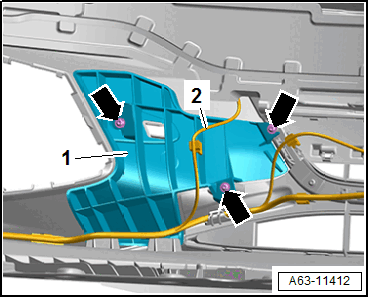

-- Free up the wiring harness -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove reinforcement -1-.

-- Free up the wiring harness -3-.

Courtesy of AUDI OF AMERICA, LLC

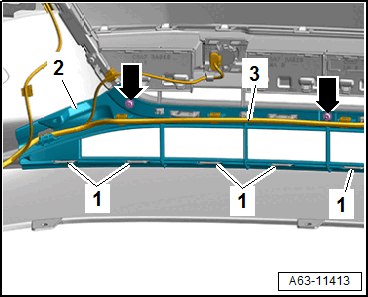

-- Remove the bolts -arrows-.

-- Release the catches -1-.

-- Remove the air intake grille -2-.
