Bumper Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

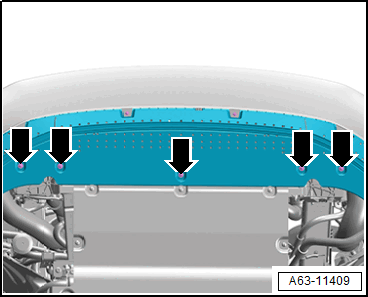

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

A6: Quantity: 7
A7 Sportback: Quantity: 5

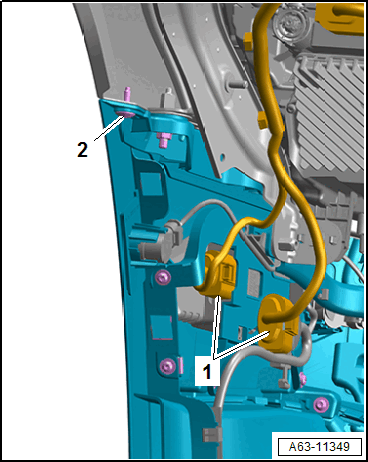

-- Push in the front wheels and loosen the wheel housing liner near the front bumper cover. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the screw -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1-.

-- Place a drip tray under the right hose coupling for the washer fluid hose.

Courtesy of AUDI OF AMERICA, LLC

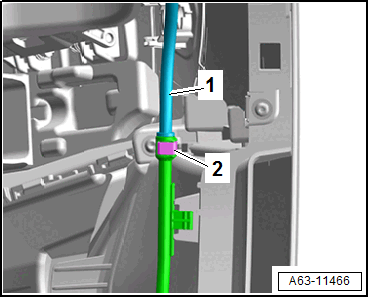

-- Slide the clip -2- out and disconnect the washer fluid hose for the laser distance regulation control module -1-.

-- Seal the hose couplings with clean plugs from the :VAS6122 .

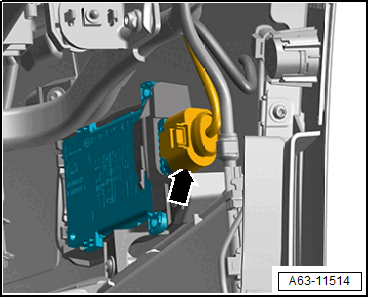

-- Right side: if equipped, disconnect the connector -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

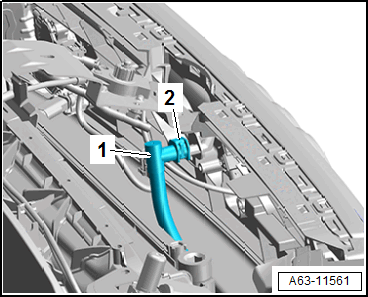

-- Slide out the clamp -2- and disconnect the washer fluid hose -1- for the night vision system camera.

Courtesy of AUDI OF AMERICA, LLC

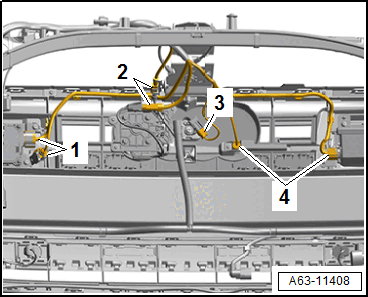

-- Disconnect the connectors -1, 2 and 4- and free up the wiring harness.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Pyrotechnical components can deploy unintentionally.

There is a risk of injury.

- Discharge static electricity by briefly touching the door striker.

-- Disconnect the connector -3- by removing the connector lock and pressing it down.

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

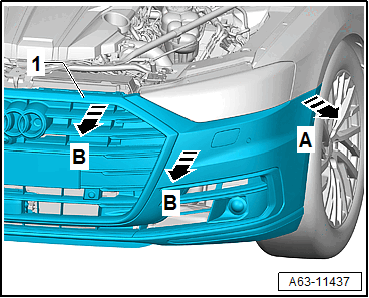

-- Disengage the side piece from the front side panel -arrow A- and remove the bumper cover -1- with the help of a second technician -B arrows-.

Courtesy of AUDI OF AMERICA, LLC
