Bumper Cover End Panel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .
-- Remove the front wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

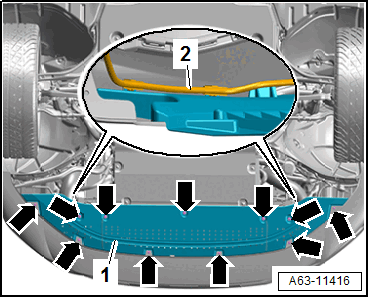

-- Remove the bolts -arrows-.
- A6: quantity: 13
- A7 Sportback: quantity: 11
-- Free up the wiring harness -2-.
-- Remove the front bumper cover end plate -1- toward the rear.
