RECIRCULATION Valve, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the corresponding turbocharger. Refer to TURBOCHARGER, REMOVING AND INSTALLING .

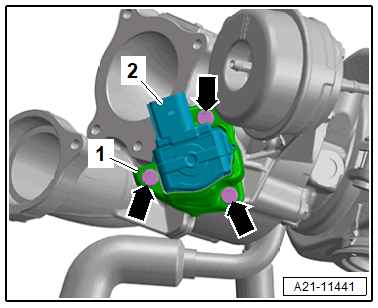

-- Remove the bolts -arrows-, remove the heat shield -1- with the recirculation valve -2-. (Shown on the Recirculation Valve, Bank 2 -N626-.)
