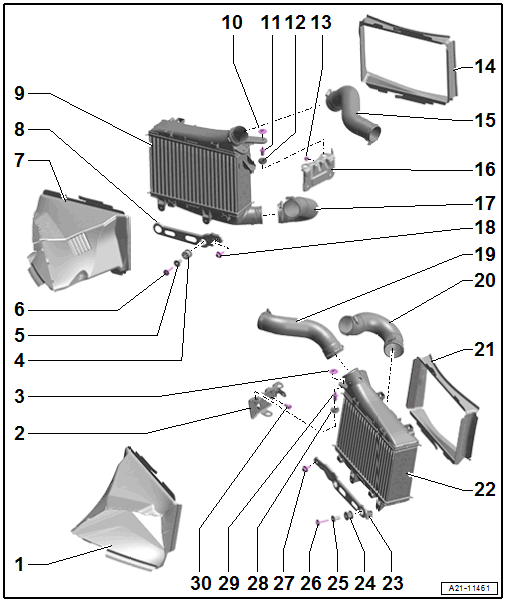

Overview - Charge Air System, Body Side
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Air Duct
- Bracket
- For the left charge air cooler
- Nut
- 20 Nm
- Grommet
- Spacer Sleeve
- Bolt
- 9 Nm
- Air Duct
- Bracket
- For the right charge air cooler
- Right Charge Air Cooler
- Removing and installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- If there are small impressions on the slats. Refer to RADIATOR AND CONDENSER ASSEMBLY .
- Nut
- 20 Nm
- Retaining Pin
- Grommet
- Nut
- 20 Nm
- Air Duct
- Upper Right Air Duct Hose
- Tightening specification. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
- Must be free of oil and grease before installing
- Bracket
- For the right charge air cooler
- Bottom Right Air Duct Hose
- Must be free of oil and grease before installing
- Tightening specification. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
- Bolt
- 20 Nm
- Upper Left Air Duct Hose
- Tightening specification. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
- Must be free of oil and grease before installing
- Bottom Left Air Duct Hose
- Tightening specification. Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
- Must be free of oil and grease before installing
- Air Duct
- Left Charge Air Cooler
- Removing and installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- If there are small impressions on the slats. Refer to RADIATOR AND CONDENSER ASSEMBLY .
- Bracket
- For the left charge air cooler
- Grommet
- Spacer Sleeve
- Bolt
- 9 Nm
- Bolt
- 20 Nm
- Grommet
- Retaining Pin
- Bolt
- 20 Nm
