Charge Air Cooler, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Pay attention to the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Remove the bumper cover end plate and the air intake grille. Refer to OVERVIEW - BUMPER COVER .
-- Remove the wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Unclip the air duct -1-.
-- Loosen the hose clamps -arrow- and remove the air duct hoses.
-- Remove the right charge air cooler in connection to the equipment version: Remove the exhaust pipe. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .

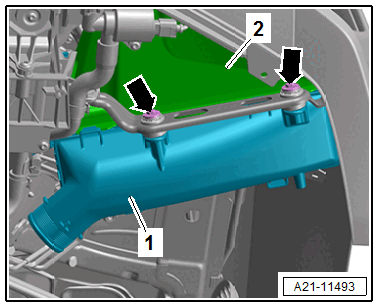

-- Remove the bolts -arrows-.
-- Disengage the charge air cooler -1- at the longitudinal member upwards.
-- Remove the charge air cooler backwards, at the same time unclip the air duct -2-.
