Lower Air Duct Pipes, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring duct -1- for the EVAP system on the wiring duct -2-.

-- Free up the wiring duct and place it toward the rear.

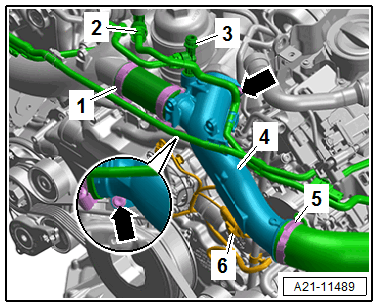

Left Air Duct Pipe:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left upper air duct pipe. Refer to UPPER AIR DUCT PIPE, REMOVING AND INSTALLING .

-- Free up the connector -6-.

TIP:

If the camshaft housing is supposed to be removed afterwards, then disconnect the connectors.

-- Loosen the clamp -5- and remove the air duct hose.

-- Loosen the hose clamp -1-.

-- Press the release buttons on both sides and remove the hose -2- for the EVAP system.

-- Remove the venturi injector -3- and free up the lines.

-- Remove the bolts -arrows- and remove the air duct pipe -4-.

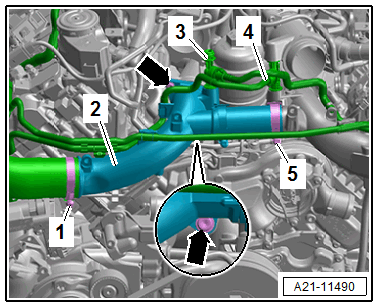

Right Air Duct Pipe:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right upper air duct pipe. Refer to UPPER AIR DUCT PIPE, REMOVING AND INSTALLING .

-- Loosen the hose clamp -1- and remove the air duct hose.

-- Loosen the hose clamp -5-.

-- Press the release buttons on both sides and remove the hose -4- for the EVAP system.

-- Pull of the venturi injector -3-.

-- Remove the bolts -arrows- and remove the air duct pipe -2-.
