Front Muffler, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front tunnel brace. Refer to OVERVIEW - UNDERBODY CROSSMEMBERS .
-- Remove the subframe shield upper section. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .

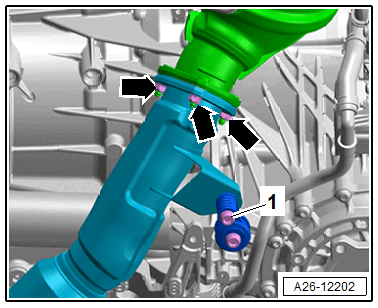

-- Remove the nuts -arrows- and the bolt -1-. (Shown on the right)
-- Loosen the clamping sleeve -arrow- and push it forward.
CAUTION:
Risk of damaging the coupling due to improper handling.
- Coupling must not be bent more than 10°.
- Do not load the coupling on the cable.
-- Remove the front muffler.
