RIBBED BELT TENSIONER FOR Generator -C-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the ribbed belt from the Generator -C-. Refer to Generator -C- RIBBED BELT, REMOVING AND INSTALLING .

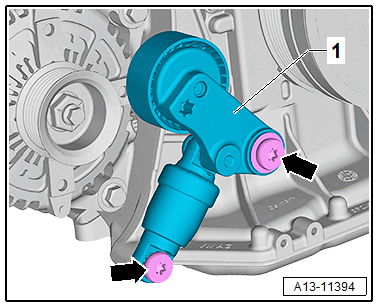

-- Remove the bolts -arrows- and remove the tensioner -1-.
