Engine Support, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the engine mount. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
Left Engine Support:

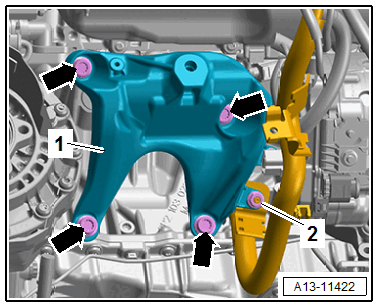

-- Remove the bolts -arrows- and the left engine support -1-.
Right Engine Support:
-- Remove the nut -2- and free up the ground wire.
-- Remove the bolts -arrows- and remove the right engine support -1-.
