Right Transmission Mount, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the right front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- for the transmission mount. (Shown left).

Fig 1: Transmission Mount Valve 1 -N262- /Transmission Mount Valve 2 -N263- Component Location

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

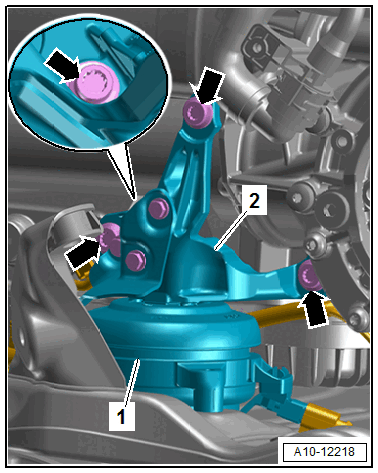

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the transmission support -2- and transmission mount -1- one after the other.
