Rear Lid Tail Lamps, Removing And Installing, A7 SPORTBACK: Removing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn the light switch off.

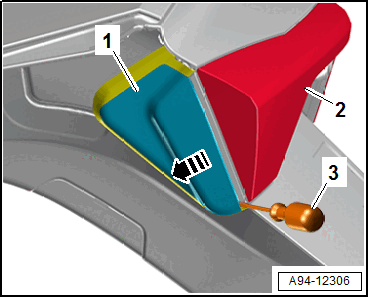

-- Position a narrow screwdriver -3- at the opening and remove the cover -1- from the tail lamp -2- in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

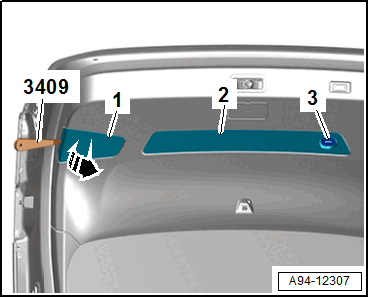

-- Pry off the cover -1- using the : 3409 -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the quick release -3- 90° counter-clockwise and tilt the emergency triangle cover -2- toward the side.

-- Remove the emergency triangle.

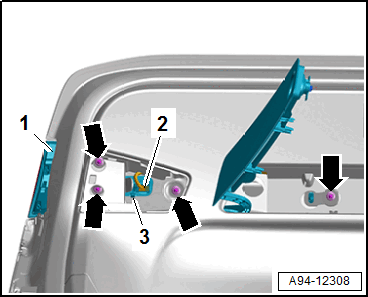

-- Remove the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

-- Release the retainer -3- and remove the tail lamp -1-.
