Overview - Rear Lid Tail Lamps, A7 SPORTBACK

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

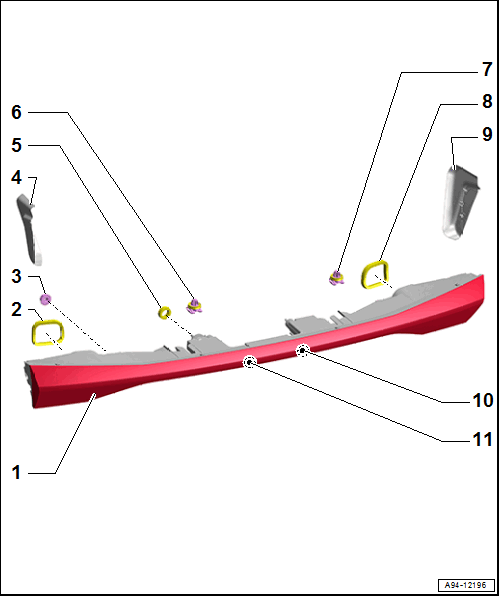

Fig 1: Exploded View Of Rear Lid Tail Lamps, A7 Sportback

Courtesy of AUDI OF AMERICA, LLC

Center Tail Lamp -MX13-
- Replace the entire tail lamp if the LED is faulty
- In the rear lid
- Removing and Installing. Refer to REAR LID TAIL LAMPS, REMOVING AND INSTALLING, A7 SPORTBACK .
Seal
- Replace if damaged
Nut
- Tightening specification and sequence. Refer to Fig 2.
- Quantity: 8
Cover
- For the tail lamp
- Removing and Installing. Refer to REAR LID TAIL LAMPS, REMOVING AND INSTALLING, A7 SPORTBACK .
Seal
- Replace if damaged
Mount
Mount
Seal
- Replace if damaged
Cover
- For the tail lamp
- Removing and Installing. Refer to REAR LID TAIL LAMPS, REMOVING AND INSTALLING, A7 SPORTBACK .
Right License Plate Lamp -X5-
- Cannot be replaced separately if faulty.
- Replacing. Refer to REAR LID TAIL LAMPS, REMOVING AND INSTALLING, A7 SPORTBACK .
Left License Plate Lamp -X4-
- Cannot be replaced separately if faulty.
- Replacing. Refer to REAR LID TAIL LAMPS, REMOVING AND INSTALLING, A7 SPORTBACK .

Tightening Specification and Sequence for the Tail Lamps

Fig 2: Tail Lamps Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Gradually tighten the nuts in the sequence shown:

Step	Bolts	Tightening Specification
1.	-1 to 8-	Install by hand all the way
2.	-1 to 8-	4 Nm
