Overview - Rear Lid Tail Lamps, A6

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

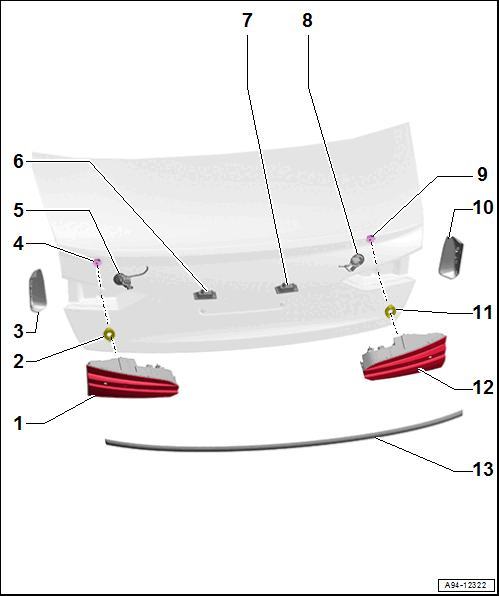

Fig 1: Exploded View Of Rear Lid Tail Lamps, A6

Courtesy of AUDI OF AMERICA, LLC

Left Tail Lamp 2 -MX5-
- Removing and Installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING, A6 .
- Adjusting. Refer to TAIL LAMP, CORRECTING INSTALLATION POSITION .
Seal
- Replace if damaged
Cover
- Replace if damaged
- For the tail lamp
- Removing and Installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING, A6 .
- Seal
Nut
- Tightening specification and sequence. Refer to Fig 2.
- Quantity: 3
Grommet
Left License Plate Lamp -X4-
- Removing and Installing. Refer to LEFT AND RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING .
Right License Plate Lamp -X5-
- Removing and Installing. Refer to LEFT AND RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING .
Grommet
Nut
- Tightening specification and sequence. Refer to Fig 2.
- Quantity: 3
Cover
- Removing and Installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING, A6 .
- For the tail lamp
Seal
- Replace if damaged
Right Tail Lamp 2 -MX6-
- Removing and Installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING, A6 .
- Adjusting. Refer to TAIL LAMP, CORRECTING INSTALLATION POSITION .
Tail Lamp Trim Molding
- Removing and Installing. Refer to MOLDINGS, TRIMS, EXTENSIONS AND TRIM PANELS .

Tightening Specification and Sequence for the Tail Lamps, A6

Fig 2: Tail Lamps Tightening Sequence, A6

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts for the tail lamps to 3.5 Nm and in the sequence -1, 2 and 3-.
