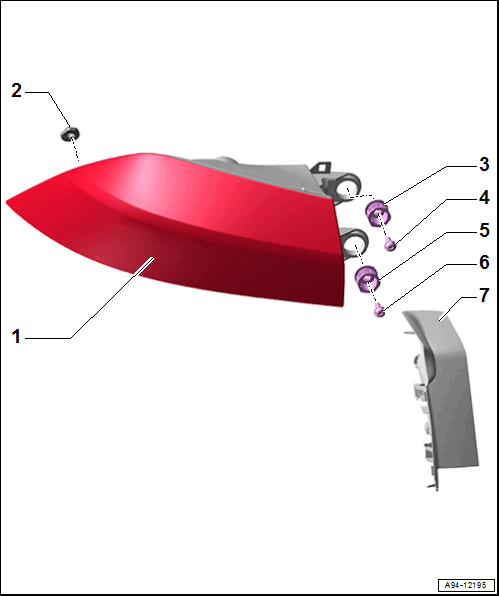

Overview - Body Tail Lamps, A7 SPORTBACK
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Tail Lamp
- Left Tail Lamp -MX3-
- Right Tail Lamp -MX4-
- Replace the entire tail lamp if the LED is faulty
- Removing and Installing. Refer to TAIL LAMPS, REMOVING AND INSTALLING, A7 SPORTBACK .
- Clip Nut
- Adjusting Nut
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR, A7 SPORTBACK .
- Screw
- 3.5 Nm
- Adjusting Nut
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR, A7 SPORTBACK .
- Screw
- 3.5 Nm
- Cover
- For the tail lamp
- Removing and Installing. Refer to REAR LID TAIL LAMPS, REMOVING AND INSTALLING, A7 SPORTBACK .
