Overview - Body Tail Lamps, A6

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

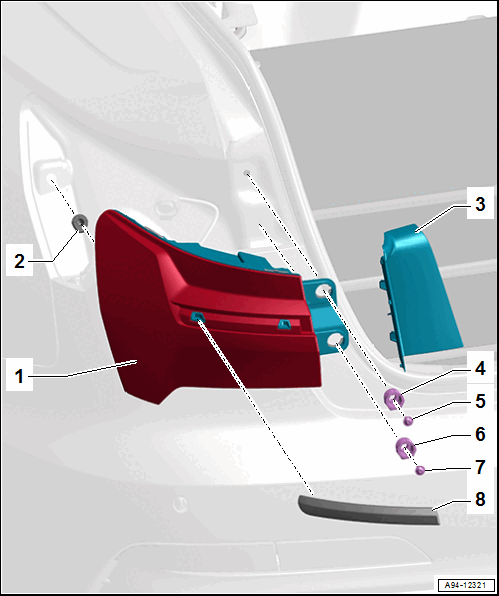

Fig 1: Exploded View Of Body Tail Lamps, A6

Courtesy of AUDI OF AMERICA, LLC

Tail Lamp
- Left Tail Lamp -MX3-
- Right Tail Lamp -MX4-
- Replace the entire tail lamp if the LED is faulty
- Removing and Installing. Refer to TAIL LAMP, REMOVING AND INSTALLING, A6 .
Clip Nut
Cover
- For the tail lamp
- Removing and Installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING, A6 .
Adjusting Nut
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR, A6 .
Screw
- 3.5 Nm
Adjusting Nut
- Adjusting. Refer to BODY TAIL LAMP, ALIGNING WITH BODY CONTOUR, A6 .
Screw
- 3.5 Nm
Tail Lamp Trim Molding
- Removing and Installing. Refer to MOLDINGS, TRIMS, EXTENSIONS AND TRIM PANELS .
