Tail Lamp, Removing And Installing, A6: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn the light switch off.

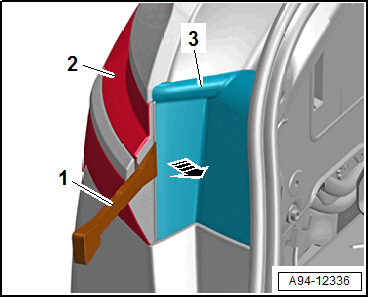

-- Position the scraper -1- as shown and release the retainers in direction of -arrow-.
-- Remove the cover -3- from the tail lamp -2-.
Tip:
The cover must be removed very carefully so that the guide and the hooks do not get damaged.

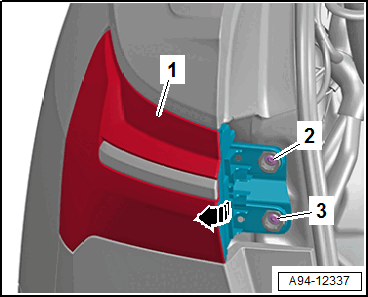

-- Remove the bolts -2 and 3-.
-- Pivot the tail lamp -1- carefully slightly to the outside in direction of -arrow-. Loosen the tail lamp from the outside toward the rear from the clip nut and remove rearward.
-- Disconnect the connector.
