High-Mounted Brake Lamp Bulb, Removing And Installing, A7 SPORTBACK: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear lid upper trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .

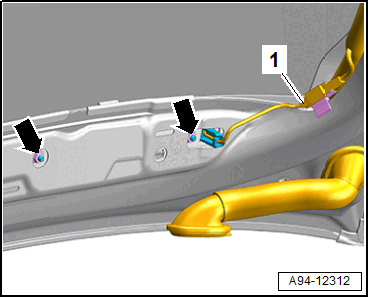

-- Disconnect the connector -1-.
-- Remove the nuts -arrows-.

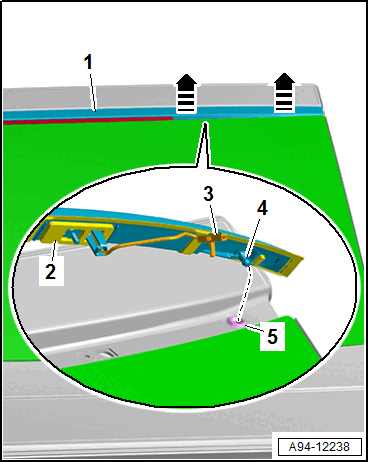

-- Pry out the retaining pin -4- on the outside using the : T10383/1 from the clip nuts -5-.
-- Pry up the lamp -1- for the high-mounted brake lamp using the : T10383/1 from the body at the same time the seals -2- are loosened from the bonding.
-- Guide the wiring harness -3- out.
