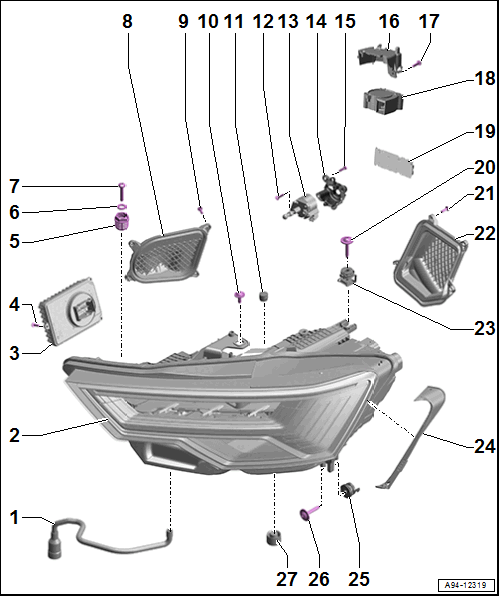

Overview - Headlamps, Matrix High Led Headlamps, A6
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Breather Hose
- For the headlamp housing
- Headlamp Housing
- Removing and Installing. Refer to HEADLAMP HOUSING, REMOVING AND INSTALLING .
- LED Headlamp Power Output Module 1
- Right LED Headlamp Power Output Module 1 -A27-
- Left LED Headlamp Power Output Module 1 -A31-
- Removing and Installing. Refer to RIGHT AND LEFT LED HEADLAMP POWER OUTPUT MODULE 1 -A27- / -A31-, REMOVING AND INSTALLING, MATRIX HIGH LED HEADLAMPS, A6 .
- Screw
- 1.5 Nm
- Quantity: 3
- Adjusting Nut
- For the headlamp height adjustment
- Washer
- Screw
- 4.5 Nm
- Housing Cover
- Screw
- 1.5 Nm
- Quantity: 4
- Screw
- 4.5 Nm
- Plugs
- Market-specific
- Screw
- 1.5 Nm
- Quantity: 2
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-, Right Headlamp Beam Adjustment Motor -V49-
- Removing and Installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR - V48- / - V49-, REMOVING AND INSTALLING, MATRIX LOW LED HEADLAMPS, A6 .
- Mount
- For headlamp beam adjustment motor
- Screw
- 1.5 Nm
- Quantity: 2
- Bracket
- For headlamp fan
- Screw
- 1.5 Nm
- Quantity: 2
- Headlamp Fan
- Left Headlamp Fan -V407-
- Right Headlamp Fan -V408-
- Removing and Installing. Refer to LEFT AND RIGHT HEADLAMP FAN -V407- / -V408-, REMOVING AND INSTALLING, A6 .
- Matrix Headlamp Power Output Module
- Left Matrix Headlamp Power Output Module -A44-
- Right Matrix Headlamp Power Output Module -A45-
- Removing and Installing. Refer to LEFT AND RIGHT MATRIX HEADLAMP POWER OUTPUT MODULE -A44- / -A45-, REMOVING AND INSTALLING .
- Screw
- 4.5 Nm
- Screw
- 1.5 Nm
- Quantity: 4
- Housing Cover
- Adjuster
- For adjusting the headlamp housing to the bumper contour
- Sealing Frame
- Removing and Installing. Refer to SEALING FRAME, REMOVING AND INSTALLING .
- Adjuster
- For adjusting the headlamp housing to the bumper contour
- Screw
- 4.5 Nm
- Filter Membrane
- Removing and Installing. Refer to FILTER MEMBRANE, REMOVING AND INSTALLING .
