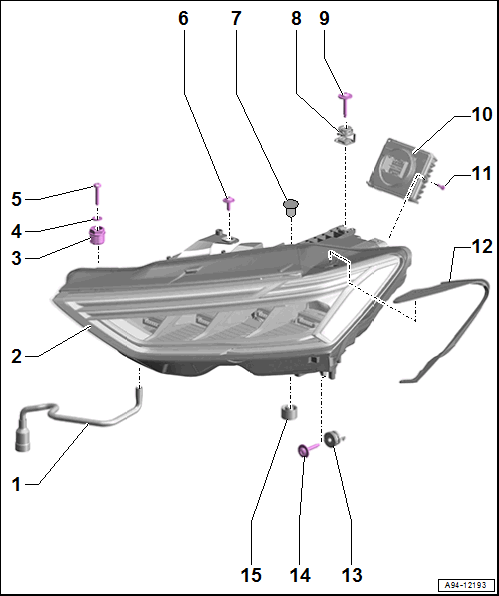

Overview - Headlamps, Led Headlamps, A7 SPORTBACK, RS 7 SPORTBACK, RS 6 AVANT
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Breather Hose
- For the headlamp housing
- Headlamp Housing
- Removing and Installing. Refer to HEADLAMP HOUSING, REMOVING AND INSTALLING .
- Adjusting Nut
- For the headlamp height adjustment
- Washer
- Screw
- 4.5 Nm
- Screw
- 4.5 Nm
- Plugs
- Market-specific
- Adjuster
- For adjusting the headlamp housing to the bumper contour
- Screw
- 4.5 Nm
- LED Headlamp Power Output Module 1
- Right LED Headlamp Power Output Module 1 -A27-
- Left LED Headlamp Power Output Module 1 -A31-
- Screw
- 1.5 Nm
- Quantity: 3
- Sealing Frame
- Removing and Installing. Refer to SEALING FRAME, REMOVING AND INSTALLING .
- Adjuster
- For adjusting the headlamp housing to the bumper contour
- Screw
- 4.5 Nm
- Filter Membrane
- Removing and Installing. Refer to FILTER MEMBRANE, REMOVING AND INSTALLING .
