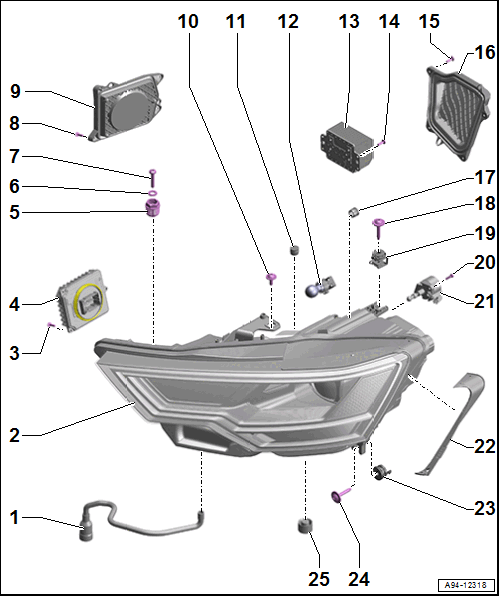

Overview - Headlamps, Led Headlamps, A6
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Breather Hose
- For the headlamp housing
- Headlamp Housing
- Removing and Installing. Refer to HEADLAMP HOUSING, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 3
- LED Headlamp Power Output Module 1
- Right LED Headlamp Power Output Module 1 -A27-
- Left LED Headlamp Power Output Module 1 -A31-
- Removing and Installing. Refer to RIGHT AND LEFT LED HEADLAMP POWER OUTPUT MODULE 1 -A27- / -A31-, REMOVING AND INSTALLING, LED HEADLAMPS, A6 .
- Adjusting Nut
- For the headlamp height adjustment
- Washer
- Bolt
- 4.5 Nm
- Bolt
- 1.5 Nm
- Quantity: 4
- Housing Cover
- Bolt
- 4.5 Nm
- Plugs
- Market-specific
- Front Turn Signal Bulb
- Left Front Turn Signal Bulb -M5-
- Right Front Turn Signal Bulb -M7-
- 12 V, 24 W
- Bulb, Replacing. Refer to LEFT AND RIGHT FRONT TURN SIGNAL BULB -M5- / -M7-, REMOVING AND INSTALLING .
- LED Module 1
- With the following integrated components
- Left Low Beam Headlamp Bulb -M29-
- Left High Beam Headlamp Bulb -M30-
- Right Low Beam Headlamp Bulb -M31-
- Right High Beam Headlamp Bulb -M32-
- Removing and Installing. Refer to LED MODULE 1, REMOVING AND INSTALLING, LED HEADLAMPS, A6 .
- With the following integrated components
- Screw
- 1.5 Nm
- Quantity: 4
- Screw
- 1.5 Nm
- Quantity: 4
- Headlamp Beam Adjustment Motor Housing Cover
- The headlamp housing must be cut open to replace the adjustment motor
- A housing cover can be ordered to seal the assembly opening. Refer to the Parts Information.
- Cap
- For the headlamp beam adjustment motor screw
- The headlamp housing must be cut open to replace the adjustment motor
- A cap can be ordered to seal the assembly opening. Refer to Parts Information
- Screw
- 4.5 Nm
- Adjuster
- For adjusting the headlamp housing to the bumper contour
- Screw
- 1.5 Nm
- Quantity: 2
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-, Right Headlamp Beam Adjustment Motor -V49-
- Removing and Installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR - V48- / - V49-, REMOVING AND INSTALLING, LED HEADLAMPS/MATRIX LOW LED HEADLAMPS, A6 .
- Sealing Frame
- Removing and Installing. Refer to SEALING FRAME, REMOVING AND INSTALLING .
- Adjuster
- For adjusting the headlamp housing to the bumper contour
- Screw
- 4.5 Nm
- Filter Membrane
- Removing and Installing. Refer to FILTER MEMBRANE, REMOVING AND INSTALLING .
