Overview - Headlamps, Headlamp Repair Set, A6

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

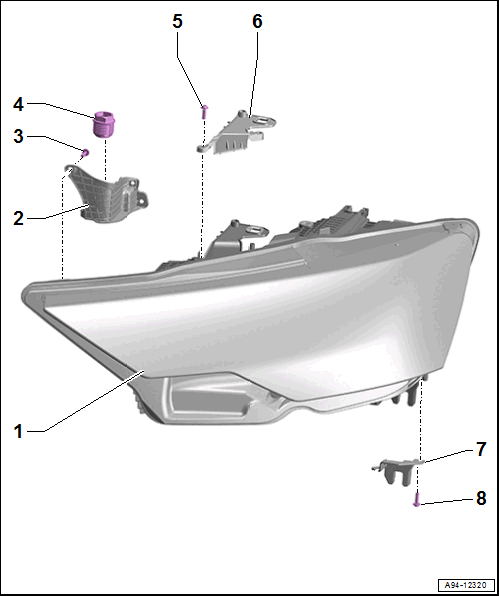

Fig 1: Exploded View Of Headlamps, Headlamp Repair Set, A6

Courtesy of AUDI OF AMERICA, LLC

Headlamp Housing
Inner Bracket
- From the headlamp housing repair kit. Refer to the Parts Information.
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING, A6 .
Screw
- 6 Nm
- Quantity: 3
Adjusting Nut
- For the headlamp height adjustment
Screw
- 6 Nm
- Quantity: 2
Center Bracket
- From the headlamp housing repair kit. Refer to the Parts Information.
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING, A6 .
Outer Bracket
- From the headlamp housing repair kit. Refer to the Parts Information.
- Replacing. Refer to HEADLAMP HOUSING REPAIR KIT, INSTALLING, A6 .
Screw
- 6 Nm
- Quantity: 2
