Led Module 2, Removing And Installing, Matrix Low A6: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove LED module 1. Refer to LED MODULE 1, REMOVING AND INSTALLING, MATRIX LOW A6 .

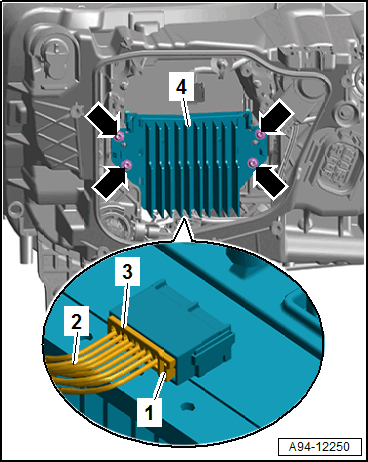

-- Remove the screws -arrows-.
-- Free up the wiring harness -2-.
-- Remove the LED module -4-.
-- Disconnect the connector -3- by releasing the retainer -1-.
