Sealing Frame, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING .

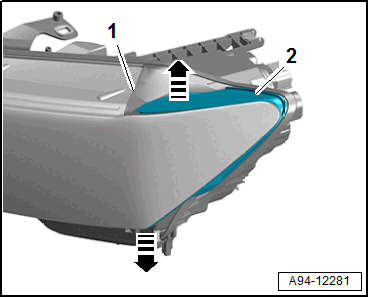

-- Detach the sealing frame -2- from the top and bottom of the headlamp housing -1- in direction of -arrows- and remove it.

GWWA94-12281Courtesy of AUDI OF AMERICA, LLC
