Left And Right Matrix Headlamp Power Output Module -A44- / -A45-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Working with the : VAS6613 . Refer to ELECTRO-STATIC DISCHARGE WORK SURFACE .
- To protect against electrostatic discharge, the : VAS6613 is designed to provide sufficient grounding.
-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .
-- Remove the headlamp. Refer to HEADLAMP FAN, REMOVING AND INSTALLING .
-- Place the headlamp on the ESD work surface.

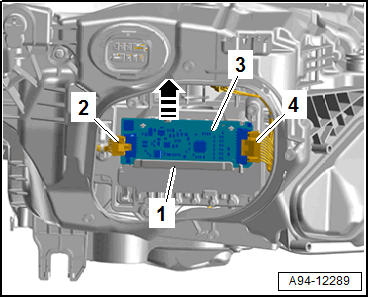

-- Press the release button and disconnect the connectors -2 and 4-.
-- Release the retainer -arrow- and remove the power output module -3- from the mount -1-.
