Left And Right Headlamp Fan 2 -V463- / -V464-, Removing And Installing, A7 SPORTBACK, RS 7 SPORTBACK, RS 6 AVANT: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the headlamp washer system washer nozzle and move it to the side with the washer fluid hose still attached. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE, REMOVING AND INSTALLING .

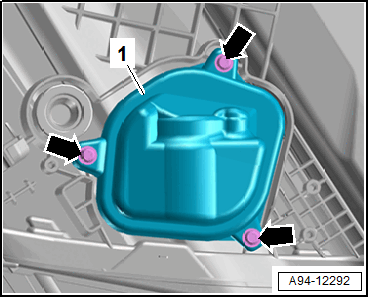

-- Remove the screws -arrows-.
-- Remove the housing cover -1-.

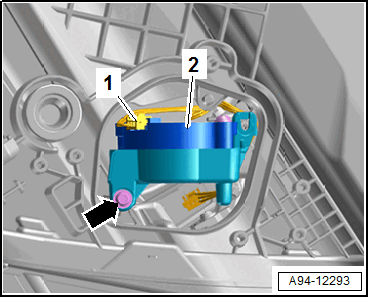

-- Remove the bolt -arrow-.
-- Remove the fan -2- downward.
-- Disconnect the connector -1-.

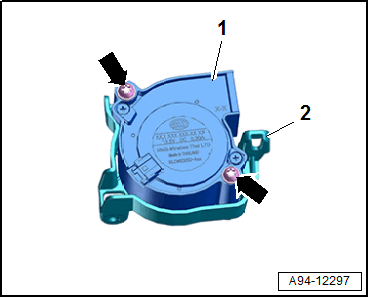

-- Remove the screws -arrows-.
-- Remove the fan -1- from the bracket -2-.
