Left And Right Headlamp Fan -V407- / -V408-, Removing And Installing, A7 SPORTBACK, RS 7 SPORTBACK, RS 6 AVANT: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

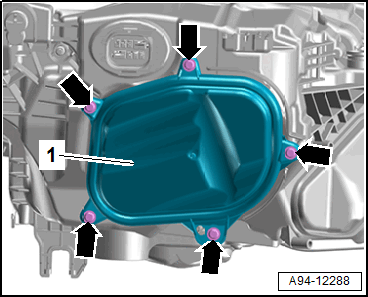

-- Remove the screws -arrows-.
-- Remove the cover -1-.

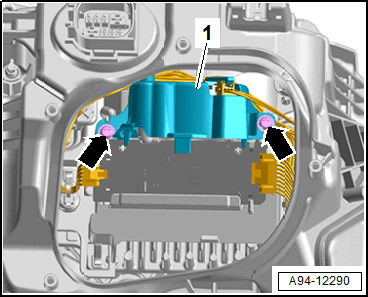

-- Remove the screws -arrows-.
-- Remove the fan -1-.

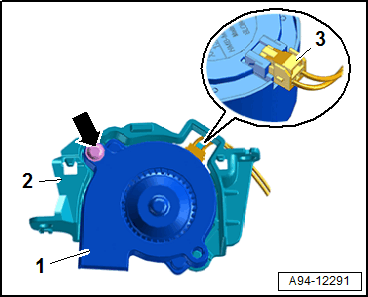

-- Remove the bolt -arrow- and turn the bracket -2- to the side.
-- Disconnect the connector -3-.
-- Remove the fan -1- with the bracket.
