Near Field Communication Control Module 2 -J1170-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console insert trim. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

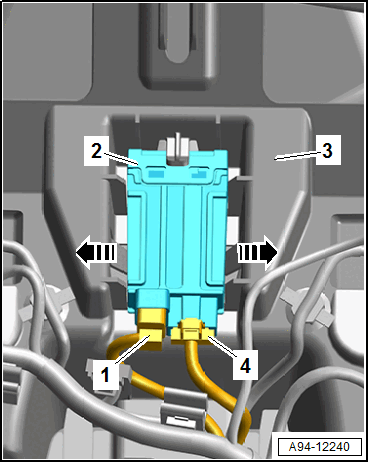

-- Disconnect the connector -4- and antenna wire -1-.
-- Release the catches in direction of -arrows-, and remove the Near Field Communication Control Module 2 -J1170- -2- from the mount -3-.
