Access/Start System Antenna in Luggage Compartment -R137-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2022 Audi RS 7 Sportback, 2022 Audi A7 e Quattro, 2022 Audi A7 Quattro, 2021 Audi S7, and 2021 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles without High-Voltage System (0K0/0K4)

-- Remove the lock carrier trim panel. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

-- Press the spare tire well trim to the side in the area near the antenna.

TIP:

If the access/start authorization system antenna in the luggage compartment cannot be removed as described, the spare tire well trim must be removed. Refer to SPARE TIRE WELL TRIM, REMOVING AND INSTALLING .

Vehicles with High-Voltage System (0K3)

-- Remove the luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING .

-- Remove the structural foam from the left side of the Battery -A-.

Continuation for All Vehicles

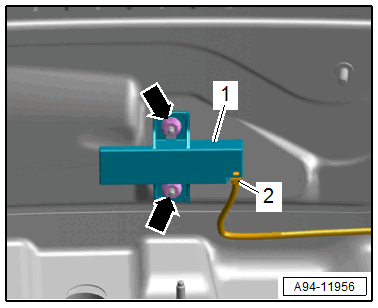

-- Remove the nuts -arrows- and remove the antenna -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.
