FINAL DRIVE IDENTIFICATION, 0D3 AND 0BX "quattro sport"

WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

The 0D3 "quattro sport" rear final drive is assigned to the following transmissions:

8-Speed Automatic Transmission 0D5 AWD

The 0BX "quattro sport" rear final drive is assigned to the following transmissions:

8-Speed Automatic Transmission 0D6 AWD

Rear final drive allocation

Refer to TRANSMISSION/ENGINE ALLOCATION

Location on Rear Final Drive

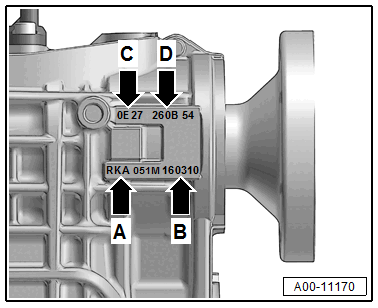

Fig 1: Identifying Location On Rear Final Drive

Courtesy of AUDI OF AMERICA, LLC

Clutch classification -arrow 1-.

Code and production date -arrow 2-

The identifying feature of the 0D3 and 0BX "quattro sport" rear final drive is the hydraulic control unit with the side chambers.

-arrow A- code -RKA-

Courtesy of AUDI OF AMERICA, LLC
-arrow B- production date -160310-

Example:	16	03	10
	I	I	I
	Production Year	Month	Day

-arrow C- Classification (classification of the clutch friction values) for the left clutch. Example: -0E27-
-arrow D- Classification (classification of the clutch friction values) for the right clutch. Example: -260B-

Additional data can be ignored.

When the rear final drive is replaced, not only the final drive code but also the PR number and the vehicle engine code must be verified in the Parts Information. This is the only way to assure the correct allocation.
