FINAL DRIVE CODE, 0B0 "quattro ultra"
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
The 0B0 "quattro ultra" rear final drive is assigned to the following transmissions:
- 6-Speed Manual Transmission 0CX AWD
- 7-Speed Dual Clutch Transmission 0CK AWD
Rear final drive allocation
- Refer to TRANSMISSION/ENGINE ALLOCATION

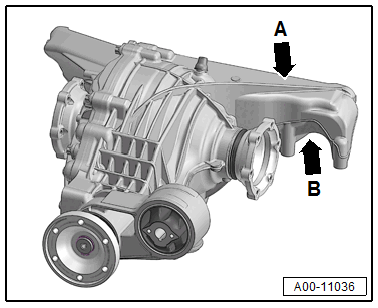

Layout on rear final drive 0B0 "quattro ultra", 09R "quattro ultra"
- -Arrow A- barcode sticker with part number, code and production date
- -Arrow B- codes, serial number and production date

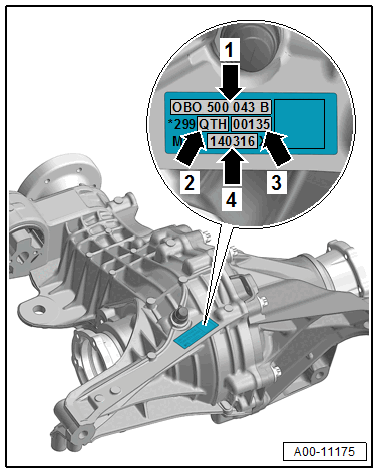

Example of Barcode Sticker with Part Number, Code and Production Date
- -arrow 1- >>0B0<< final drive with part number (example: 0B0 500 043 B)
- -arrow 2- code -QTH-
- -arrow 3- serial number -00135-
- -arrow 4- production date of rear final drive -140316-
| Example: | 14 | 03 | 16 |
|---|---|---|---|
| I | I | I | |
| Day | Month | Production year -2016- |
Additional data can be ignored.

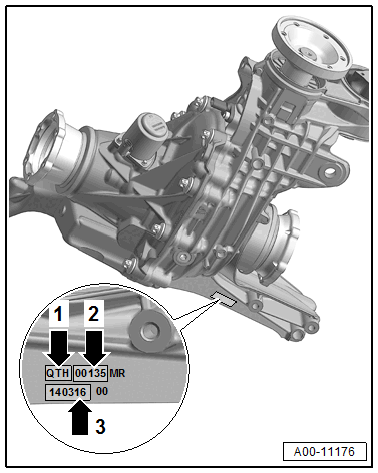

Example of date of manufacture of the rear final drive
- -arrow 1- code -QTH-
- -arrow 2- serial number -00135-
- -arrow 3- production date -140316-
| Example: | 14 | 03 | 16 |
|---|---|---|---|
| I | I | I | |
| Day | Month | Production year -2016- |
Additional data can be ignored.
- When installing a new rear final drive, not only the final drive code but also the PR number and the vehicle engine code must be verified in the Parts Information. This is the only way to assure the correct allocation.
