All-Wheel Drive Clutch Identification, 0CJ Or 0CX
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
There are two versions of the all-wheel drive clutch, they do not differ optically from each other and are for this reason only allocated via the part number.
- The all-wheel drive clutch 0CJ can transfer up to 800 Nm.
- The all-wheel drive clutch 0CX can transfer up to 1200 Nm.

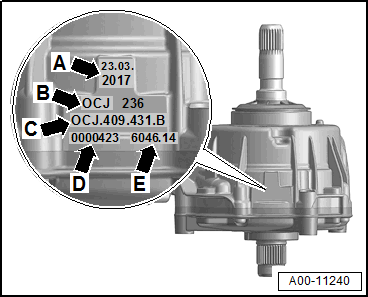

Location on All-Wheel Drive Clutch 0CJ or 0CX
- -Arrow A- Production date
Example: 03/23/2017
- -Arrow B- type of all-wheel drive clutch
Example: 0CJ
- -Arrow C- part numbers
Example: 0CJ 409 431 B
- -Arrow D- serial number
Example: 0000423
- -Arrow E- clutch classification
Example: 6046.14
