ELECTRICAL COMPONENTS, REAR FINAL DRIVE, 0D3 AND 0BX "quattro sport"
WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

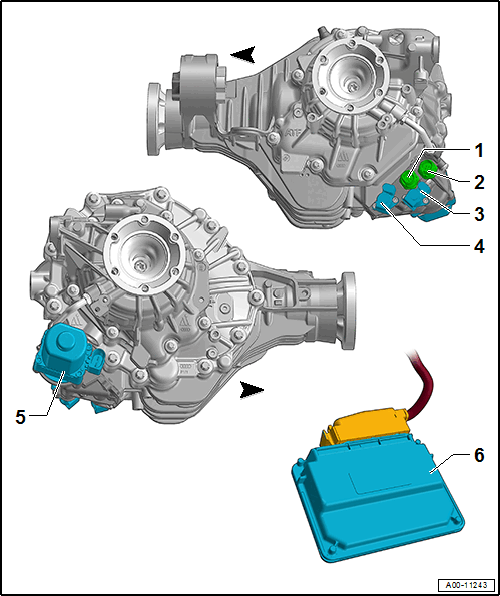

- Oil Pressure/Temperature Sensor 2 -G640-
- Oil Pressure/Temperature Sensor -G437-
- All-Wheel Drive Clutch Valve 2 -N446-
- All-Wheel Drive Clutch Valve -N445-
- All-Wheel Drive Pump -V415-
- Differential Lock Control Module -J187-
- Component Location. Refer to COMPONENT LOCATION OVERVIEW - TRANSMISSION CONTROL .
- Additional work after replacing the control module. Refer to ADDITIONAL WORK AFTER REPLACING Differential Lock Control Module -J187- .
- Important signals from engine control module and ABS Control Module -J104- are transmitted via the data bus to the All-Wheel Drive Control Module --.
