INPUT SHAFT SEAL, REPLACING, 0DB, 0D2, 0G2, 09R "quattro ultra", 0B0 "quattro ultra": Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ7, 2022 Audi Q7, 2021 Audi SQ7, 2021 Audi Q7, and 2020 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying New Seal -A- On T40222/1

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Fill the space between the sealing/dust lip halfway with Sealing Grease: G 052 128 A1 .

-- Place the new shaft seal -A- on the Guide Sleeve: T40222/1 .

Tip:

Make sure the shaft seal spring is in its installation position behind the sealing lip.

-- Coat outer edge of the seal with gear oil.

-- Push the Guide Sleeve: T40222/1 with the shaft seal -A- onto the pinion -B-.

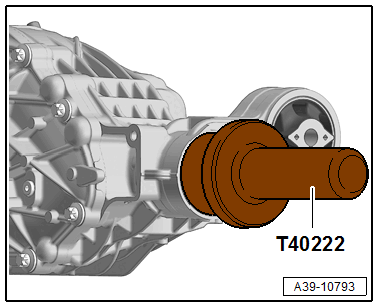

-- Push in the new shaft seal to the >>installation dimension<< using the Seal Installer - Input Shaft: T40222 .

Courtesy of AUDI OF AMERICA, LLC

Installed dimension

Final Drive	Installed dimension in [mm] under the housing edge
0DB	25.5 ± 0.2
0B0 "quattro ultra"	25.5 ± 0.2
0D2	24.0 ± 0.2
0G2	24.0 ± 0.2
09R "quattro ultra"	24.0 ± 0.2

-- Remove the Seal Installer - Input Shaft: T40222 and Guide Sleeve: T40222/1 .

CAUTION:

Hot components.

Burning of hands is possible.

- Wear safety gloves.

- If using a Heating Plate the temperature must be observed using a Digital Thermometer: VAS 6519 .

-- Warm up the flange/driveshaft -B- with an Inductive Heater: VAS 6414 or a Heating Plate to 115 °C (239 °F).

Fig 2: Locating Mark Position Of Flange/Driveshaft To Pinion

Courtesy of AUDI OF AMERICA, LLC

-- Position the flange/driveshaft -B- on the pinion -A- so that the mark -arrow- is in a straight line.

-- Install the flange/driveshaft using the Seal Installer - Hollow Shaft: T10380 until it stops.

Fig 3: Identifying T10380

Courtesy of AUDI OF AMERICA, LLC

Install the circlip -1- as follows:

Fig 4: Identifying Locking Ring, Installation

Courtesy of AUDI OF AMERICA, LLC

Always replace the circlip -1-.
The bevel on the inner diameter of the circlip -arrow A- faces out, toward the driveshaft.
The wide tab on the circlip -arrow B- must be on the right side, as shown.

Note the following when replacing the flange/driveshaft:

The circlip -1- must be redetermined.
For this, determine and insert the thickest locking ring -1- that can still be installed in the groove. Refer to the Parts Information for the part number.

-- Attach the driveshaft to the rear final drive. Refer to Figure.

Fig 5: Install the driveshaft on the rear final drive.

Courtesy of AUDI OF AMERICA, LLC

-- Fill the axle oil in the rear final drive and check the level. Refer to GEAR OIL, CHECKING LEVEL .

-- Install the crossmember. Refer to OVERVIEW - UNDERBODY BRACING .

-- Assemble the exhaust system. Refer to the appropriate Exhaust Information .
