Gear Oil, Draining And Filling, 0DB, 0D2, 0G2, 0DG

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ7, 2022 Audi Q7, 2021 Audi SQ7, 2021 Audi Q7, and 2020 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Charging Device for AWD Clutch Coupling 2: VAS 6291A

Fig 1: Device For Haldex Coupling 2 - Adapter 2VAS6291/2
Courtesy of AUDI OF AMERICA, LLC
Adapter for Oil Filling: VAS 6291/1 or Charging Device for AWD Clutch Coupling 2 - Adapter 2 : VAS 6291/2

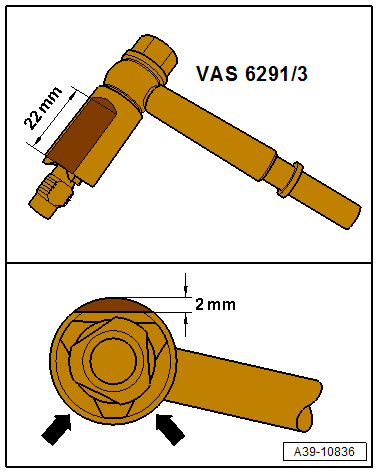

Charging Device For AWD Clutch Coupling 2 - Adapter 3: VAS 6291/3 (rework if necessary. Refer to Figure.)

Fig 2: Identifying Charging Device For Haldex Coupling 2 - Adapter 3 VAS6291/3
Courtesy of AUDI OF AMERICA, LLC
The Oil Filler - Adapter 6: VAS 6262/6 must be used on some fluid containers.

Fig 3: Adapter For Oil Filling 6 VAS 6262/6
Courtesy of AUDI OF AMERICA, LLC
The Oil Filler - Adapter 7: VAS 6262/7 must be used on some fluid containers.

Fig 4: Identifying Adapter
Courtesy of AUDI OF AMERICA, LLC
Drip Tray

Draining

-- Final drive 0DB, 0D2, 0G2: remove the check plug for the gear oil -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Final drive 0DG: remove the check plug for the gear oil -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

Removing the gear oil check plug allows the gear oil to drain faster.

-- Remove the drain plug -arrow B- and drain the gear oil.

-- Then tighten the gear oil drain plug -arrow B-.

Tightening specification: Refer to COMPONENT LOCATION OVERVIEW - DRAIN AND CHECK PLUGS .

Filling

-- Final drive 0DB, 0D2, 0G2: remove the check plug for the gear oil -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Final drive 0DG: remove the check plug for the gear oil -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Install the Adapter for Oil Filling: VAS 6291/1 or Charging Device for AWD Clutch Coupling 2 - Adapter 2 : VAS 6291/2 -1-.

Fig 5: Identifying VAS 6291/1 Or VAS 6291/3

Courtesy of AUDI OF AMERICA, LLC

-- Attach the elbow -A- to the adapter -B-.

Fig 6: Identifying Elbow With Adapter

Courtesy of AUDI OF AMERICA, LLC

-- Route the hose over the right drive axle.

The hose must not sag. It must be routed over the right rear wheel.

-- Lower the vehicle.

-- Make sure that the valve -arrow- is closed.

Fig 7: Identifying Oil Container On Charging Device F/Haldex 2 Coup. VAS 6291

Courtesy of AUDI OF AMERICA, LLC

-- Screw the fluid container -A- onto the Charging Device for AWD Clutch Coupling 2: VAS 6291A .

-- Open the valve -arrow- and hold the oil container as shown.

The rear final drive will not be filled.

When at the correct filling of the rear final drive oil drips between the adapter -B- and the final drive housing.

Fig 8: Identifying Elbow With Adapter
Courtesy of AUDI OF AMERICA, LLC

-- Lift the vehicle.

-- If oil leaks from the adapter -B-, set down the oil container (for example, on a tool trolley).

A portion of the excess oil runs back into the oil container.

-- If no more oil runs back, remove the Charging Device for AWD Clutch Coupling 2: VAS 6291A .

The oil level is correct when the rear final drive is filled up to the lower edge of the oil fill hole.

-- Then tighten the gear oil check plug.

Tightening specification: Refer to COMPONENT LOCATION OVERVIEW - DRAIN AND CHECK PLUGS .
