Driveshaft Speed Sensor -G970-, REMOVING AND INSTALLING, 0B0 "quattro ultra", 09R "quattro ultra": Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ7, 2022 Audi Q7, 2021 Audi SQ7, 2021 Audi Q7, and 2020 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the connector on the Driveshaft Speed Sensor -- -1-.

GWWA39-10864Courtesy of AUDI OF AMERICA, LLC

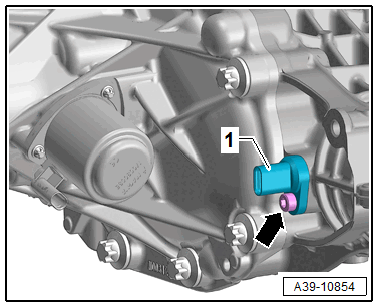

-- Remove the bolt -arrow- and then remove the Speed Sensor --.

GWWA39-10854Courtesy of AUDI OF AMERICA, LLC
