Driveshaft Speed Sensor -G970-, REMOVING AND INSTALLING, 0B0 "quattro ultra", 09R "quattro ultra": Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2022 Audi SQ7, 2022 Audi Q7, 2021 Audi SQ7, 2021 Audi Q7, and 2020 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

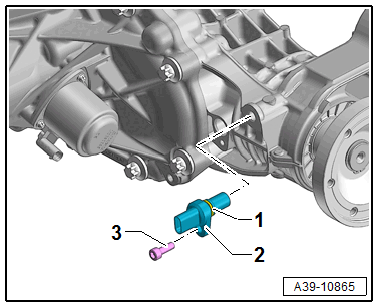

GWWA39-10865Courtesy of AUDI OF AMERICA, LLC

-- Insert the Speed Sensor -- -2- and tighten the bolt -3-. Tightening specification -item  : Bolt.

-- Connect the connector -1-.

GWWA39-10864Courtesy of AUDI OF AMERICA, LLC
