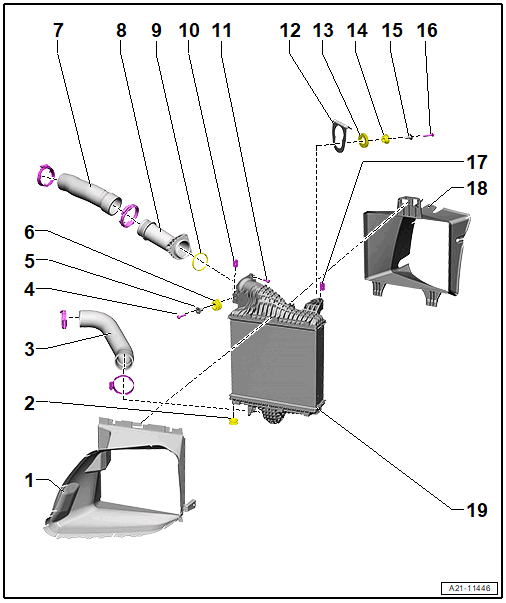

Body-Side Charge Air System
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
- Air Duct
- On the front of the charge air cooler
- Grommet
- Air Duct Hose
- To Intake Manifold
- Must be free of oil and grease before installing
- Bolt
- 8 Nm
- Spacer Sleeve
- Rubber Bushing
- Air Duct Hose
- From the Turbocharger
- Must be free of oil and grease before installing
- Connection Flange
- O-Ring
- Replace after removing
- Metal Nut
- Bolt
- 8 Nm
- Quantity: 3
- Bracket
- Link Washer
- Grommet
- Spacer Sleeve
- Bolt
- 8 Nm
- Metal Nut
- Air Duct
- On the back of the charge air cooler
- Charge Air Cooler
- Removing and Installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- If there are small impressions on the slats. Refer to RADIATOR AND CONDENSER ASSEMBLY .
