Charge Air System, Checking For Leaks

Special tools and workshop equipment required

• Turbo System Tester Kit: VAG1687
  Fig 1: Identifying Turbo System Tester Kit

  Courtesy of AUDI OF AMERICA, LLC
• Adapters : VAG1687/3  , : VAG1687/11  and : VAG1687/15
  Fig 2: Identifying Turbo System Tester Kit

  Courtesy of AUDI OF AMERICA, LLC

Procedure

-- Pay attention to the guidelines for clean working conditions. Refer to CLEAN WORKING CONDITIONS .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

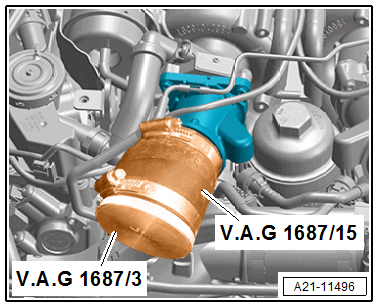

-- Connect the Adapter: VAG1687/3  and : VAG1687/15  on the right upper air duct pipe.

Courtesy of AUDI OF AMERICA, LLC

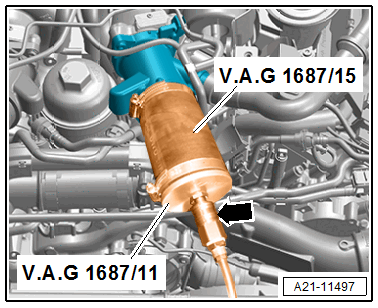

-- Connect the Turbo System Tester Kit - Adapter 11 : VAG1687/11  with the Turbo System Tester Kit - Adapter: VAG1687/15  to the turbocharger.

Courtesy of AUDI OF AMERICA, LLC

-- Connect the hose -arrow- from the Turbo System Tester Kit: VAG1687  to the adapter.

All additional procedures are described. Refer to CHARGE AIR SYSTEM, CHECKING FOR LEAKS .

Assembling

• Secure all hose connections with hose clamps that match the ones used in series production. Refer to the Parts Information.

-- Install the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

Tightening Specifications

• Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
