Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the lock carrier cover. Refer to OVERVIEW - BUMPER COVER .
-- Release the left and right catches in direction of -arrows- and remove the retaining pin -1- for the radiator upward.
-- Carefully push the radiator module as far forward as possible and secure using suitable service equipment.

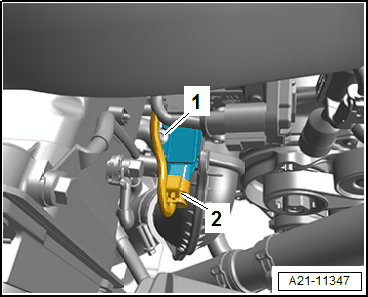

-- Disconnect the connector -2- for the Charge Air Pressure Sensor -G31-.
-- Remove the bolt -1- and the Charge Air Pressure Sensor -G31-.
