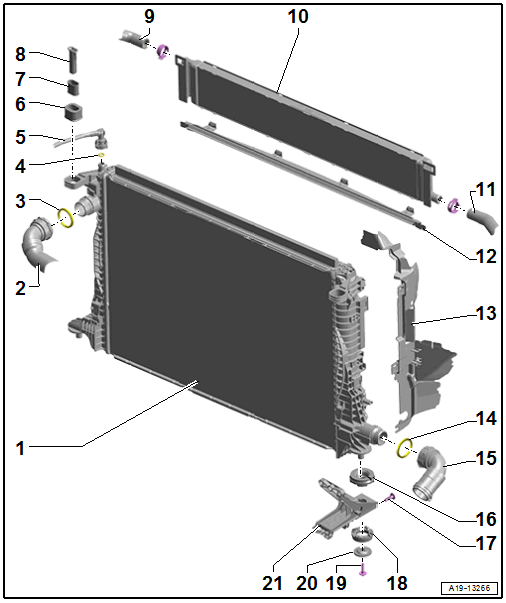

Overview - Radiator/Radiator Fan
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Radiator
- Removing and installing. Refer to RADIATOR, REMOVING AND INSTALLING .
- If there are small impressions on the slats. Refer to RADIATOR AND CONDENSER ASSEMBLY .
- If the catches for the condenser, the charge air cooler or the auxiliary radiator are damaged, replace the radiator
- Coolant Hose
- Lift the clamp to remove
- Connecting. Refer to Fig 2.
- O-Ring
- Replace after removing.
- O-Ring
- Replace after removing.
- Coolant Ventilation Line
- To the coolant expansion tank
- Lift the clamp to remove
- Connecting. Refer to Fig 2.
- Rubber Bushing
- For the radiator
- Sleeve
- Retaining Pin
- Disengage and remove using the screwdriver
- Coolant Hose
- Auxiliary Radiator
- Removing and installing. Refer to AUXILIARY RADIATOR, REMOVING AND INSTALLING .
- Coolant Hose
- Air Duct
- Air Duct
- O-Ring
- Replace after removing.
- Coolant Hose
- Lift the clamp to remove
- Connecting. Refer to Fig 2.
- Rubber Bushing
- For the radiator
- Bolt
- 9 Nm
- Backing Plate
- Bolt
- 4.5 Nm
- Backing Plate
- Radiator Bracket
Connect the Coolant Hose to the Connector Coupling
-- Replacing the damaged clip -4-.
-- Replace the damaged O-ring by removing the O-ring -2- from the connector coupling -3- with a suitable tool (do not use a sharp tool). While doing this, make sure the connector coupling and the O-ring seat are not damaged.
-- Coat the new O-ring with coolant and insert it in the coolant hose.
-- Press the coolant hose onto the connection -1- until it engages audibly.
-- Press the coolant hose on again and pull to make sure the connector coupling is engaged correctly.
