Auxiliary Radiator, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover. Refer to OVERVIEW - BUMPER COVER .
-- Release the left and right retainers, remove the right air guide -1- and leave the left air guide -2- as is.
-- Place the :VAS6208 underneath.

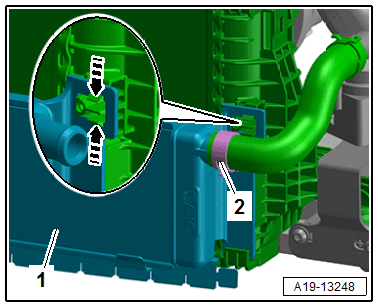

-- Loosen the left and right hose clamps -2- and remove the coolant hose.
CAUTION:
Risk of damaging the retainers due to improper handling.
- Carefully release the retainers.
-- Carefully release the left and right catches in direction of -arrows-, disengage the auxiliary radiator -1- from the radiator, slightly pivot to the front and remove downward to the right side.
