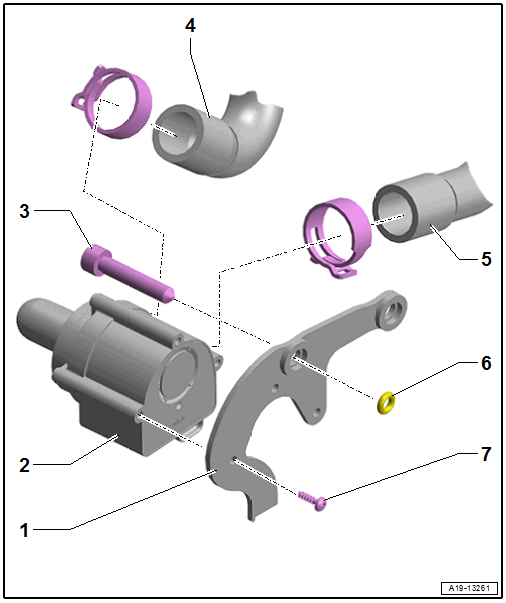

Overview - Starter Generator Coolant Pump
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- For the Starter Generator Coolant Pump -V621-
- Starter Generator Coolant Pump -V621-
- Removing and installing. Refer to Starter Generator Coolant Pump -V621-, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to OVERVIEW - CYLINDER BLOCK, BELT PULLEY SIDE .
- Coolant Hose
- Coolant Hose
- O-Ring
- Bolt
- 1.5 Nm
