Transmission Fluid Cooling Pump -V478-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

-- Discharge the refrigerant circuit. Refer to Refrigerant Circuit or REFRIGERANT CIRCUIT, DISCHARGING .

-- Remove the left wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the bumper cover end plate. Refer to OVERVIEW - BUMPER COVER .

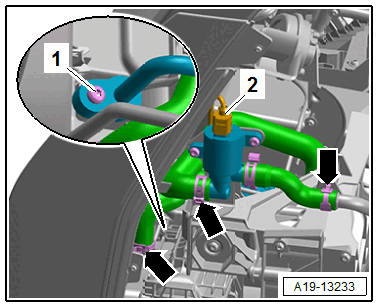

-- Disconnect the connector -2- at the Transmission Fluid Cooling Valve -N509-.

Courtesy of AUDI OF AMERICA, LLC

-- Place the :VAS6208 underneath.

-- Loosen the hose clamps -arrows- and remove the coolant hoses.

-- Remove the bolt -1- then disconnect the coolant line and move it to the side.

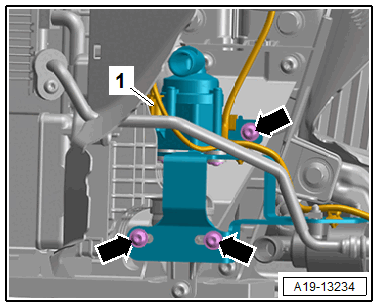

-- Disconnect the connector -1- and free up the wire.

Fig 1: Component Location of the Transmission Fluid Cooling Pump -V478-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the Transmission Fluid Cooler Pump -V478- with the bracket.

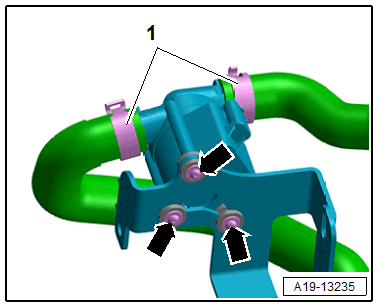

-- In order to replace the coolant pump, remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamps -1- and remove the coolant hoses.
