Starter Generator Coolant Pump -V621-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .
-- Remove the left wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

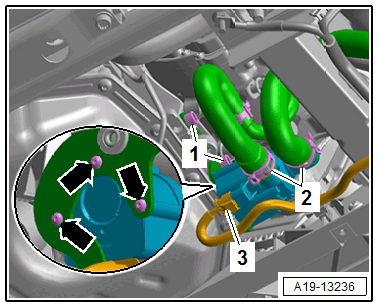

-- Disconnect the connector -3-.
-- Clamp off the coolant hoses using the :3094 .
-- Loosen the clamps -2- and remove the coolant hoses.
-- Remove the bolts -1-, then remove Starter Generator Coolant Pump -V621- with the bracket.
-- In order to replace the coolant pump, remove the bolts -arrows-.
