Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the coolant pipe on the right longitudinal member. Refer to LONGITUDINAL MEMBER COOLANT PIPE, RIGHT, REMOVING AND INSTALLING .

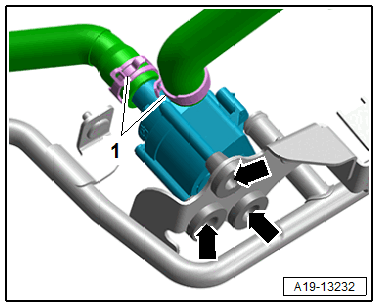

-- Remove the bolts -arrows-.
-- Loosen the hose clamps -1-, remove the coolant hoses and the Coolant Recirculation Pump -V50-.
