Coolant Valves, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bumper cover end plate. Refer to OVERVIEW - BUMPER COVER .

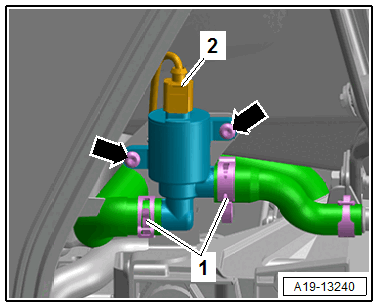

-- Disconnect the connector -2-.
-- Clamp off the coolant hoses using the :3094 .
-- Place a cloth underneath to catch leaking coolant.
-- Loosen the hose clamps -1- and remove the coolant hoses.
-- Remove the bolts -arrows- and then remove the Transmission Fluid Cooling Valve -N509-.
