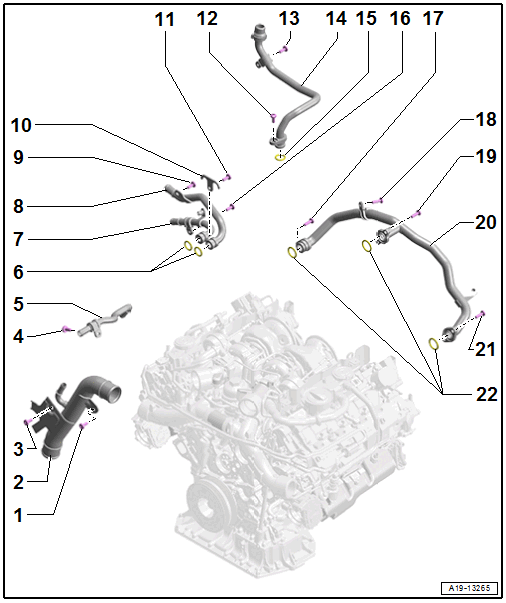

Overview - Coolant Pipes on Engine
WARNING: This page is about a different car, the 2022 Audi RS 7 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 9 Nm
- Coolant Pipe 1
- Removing and installing. Refer to COOLANT PIPE 1, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Right Front Coolant Pipe
- Removing and installing. Refer to RIGHT FRONT COOLANT PIPE, REMOVING AND INSTALLING .
- O-Rings
- Replace after removing.
- Rear Coolant Pipe 5
- Removing and installing. Refer to REAR COOLANT PIPES 4 AND 5, REMOVING AND INSTALLING .
- Rear Coolant Pipe 4
- Removing and installing. Refer to REAR COOLANT PIPES 4 AND 5, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Retaining Plate
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Rear Coolant Pipe 2
- Removing and installing. Refer to REAR COOLANT PIPE 2, REMOVING AND INSTALLING .
- O-Ring
- Replace after removing.
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Rear Coolant Pipe 3
- Removing and installing. Refer to REAR COOLANT PIPE 3, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- O-Rings
- Replace after removing.
